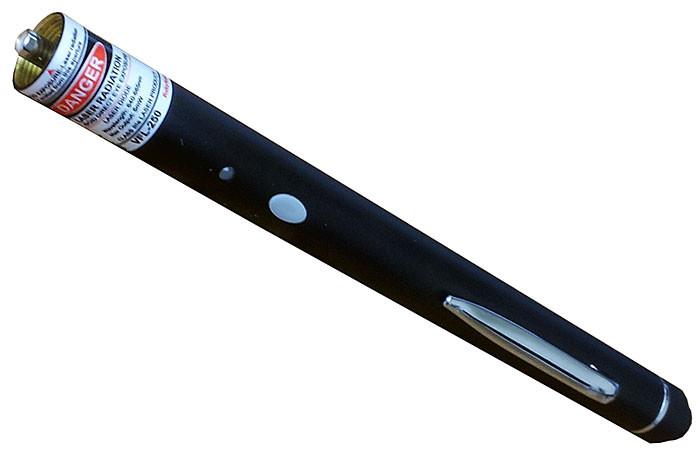

VFL-250 Pen Shape 650nm Laser Diode Visual Fault Locator for 2.5mm Ferrule (SC, ST, FC Connectors)
$139.00
VFL-250 2.5mm Ferrule 650nm Red Laser Diode Visual Fault Locator
Features
Key Features:
- Mates with 2.5mm ferrules including ST, SC, FC
- For 1.25mm ferrules addVFL-ADPadapter or use VFL-125
- 650nm visible laser diode can be operated in continuous or pulsed modes
- Mode button cycles among Continuous Wave (CW), Pulsed (2.5Hz) and Paused modes
- Locates breaks or excessive bends in fiber optic cables
- Durable metal construction
- LED status indicator provides on/off and battery status (Green-On, Red-Low Battery)
- Clip pocket-sized pen-like design
- “Ball point pen” style on/off switch on end
- End cap protects laser unit
- Note: battery is not included
Specifications
| Central Wavelength |
650 +/- 10nm |
| Output Power |
0.5mW into single mode fiber |
| Spectral Width |
< 10nm |
| Transmission |
Continuous Wave (CW) or 2.5 Hz Pulsed |
| Power Source |
2x AAA Alkaline Batteries (No Included) |
| Operating Temperature |
0 – 50 °C |
| Detection Distance |
< 6 km (3.7 miles) |
| Dimensions/Weight |
170mm x 13.5 mm / 88 grams |
| Light Source |
Class IIIA Laser Diode |
